QuickBin Ultra™
Maximum Efficiency

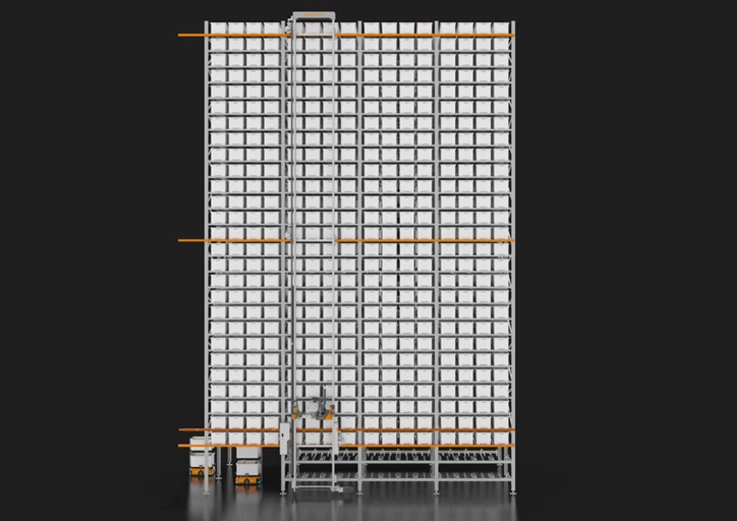

QuickBin Ultra is Quicktron’s flagship piece-picking solution designed for modern warehousing environments that demand ultra-efficient, scalable, and space-saving operations. Combining the capabilities of M5E mobile robots and the AirA5 intelligent lift system, this solution dramatically enhances order picking speed and storage density.
Unmatched Performance at Every Level
High Throughput Efficiency
Piece picking capacity: 40–45 bins/hour
Pick & place frequency: 200 times/hour
Ultra-Fast Mobility
M5E travel speed (unloaded): ≤4.5 m/s
M5E travel speed (loaded): ≤2.5 m/s
AirA5 travel & lifting speed: ≤3 m/s
Acceleration: 2 m/s²
Long Battery Life, Fast Charging
Rated endurance: Up to 12 hours per charge
Charging time: ≤1.5 hours

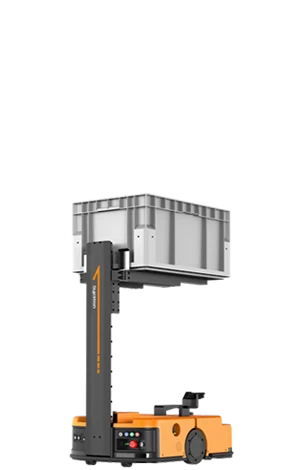

QuickBin Ultra Key Components M5 + A5
Compact Yet Capable Design
Ultra-Slim Profile
Minimum pickup height: 390 mm
Robot dimensions:
M5E – 695×460×900 mm;
A5 – 1200×800×(3000~12000) mm
Flexible Tote Handling
Supports hook, gripper, vacuum, or fork attachments
Handles totes up to 850×650×400 mm
Suitable for single, double, or multi-depth storage
Smart Aisle Utilization
Aisle width: 860mm
Multiple robots can operate simultaneously in a single aisle
Simplified rack installation with only 2–3 guide rails per aisle
Tote spacing: ≥20 mm (left–right), 0 mm (front–rear)

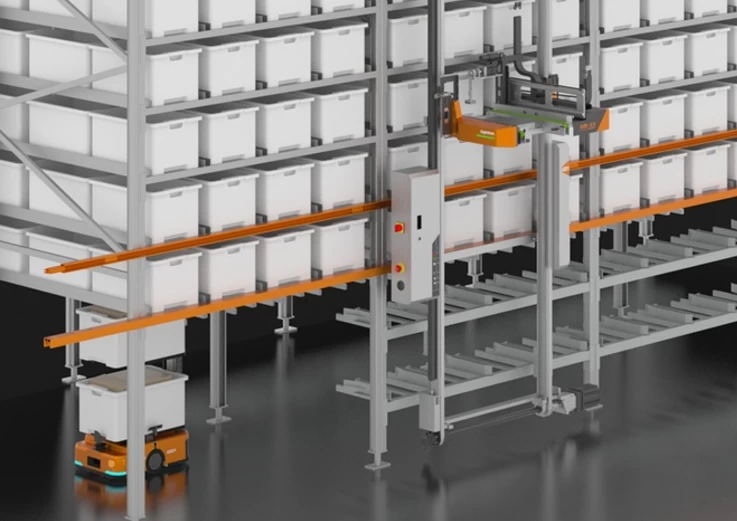

A flexible and high efficient bin picker
-webp.webp)

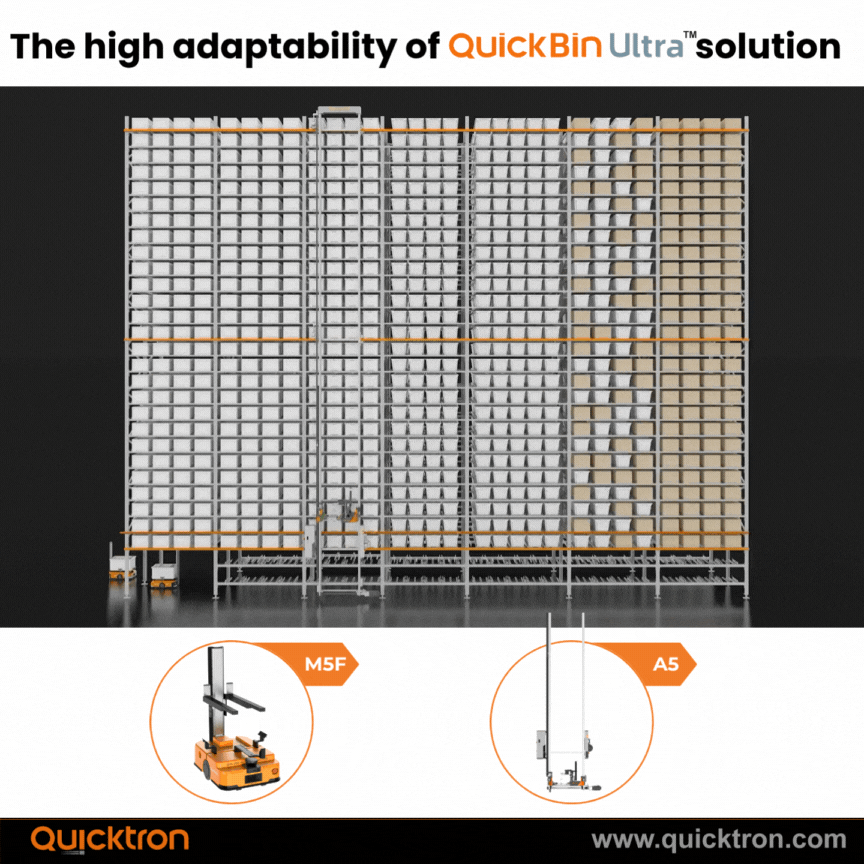

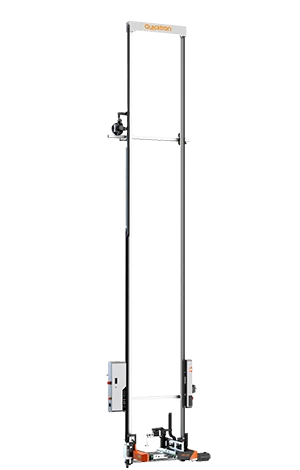

A5 bin picker can fit various dimensions of the totes

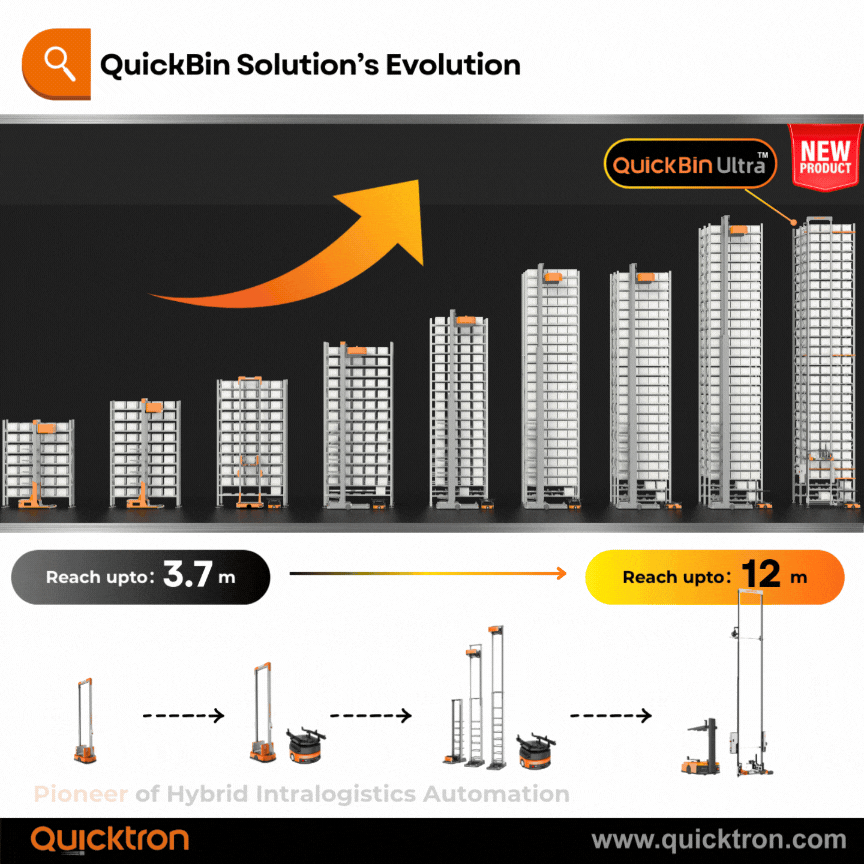

Innovations empower the storage capacity

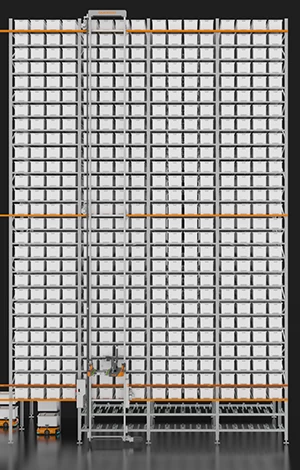

Built for Modern Warehousing
QuickBin Ultra seamlessly supports both full pallet/box operations and piece picking. It’s especially suited for high-frequency, high-density environments such as e-commerce, pharmaceuticals, and retail. Quicktron’s Mixed Workstation also supports hybrid picking — containers, racks, and pallets — ensuring full operational flexibility.
The Benefits of QuickBin
Specifications
Specification A5

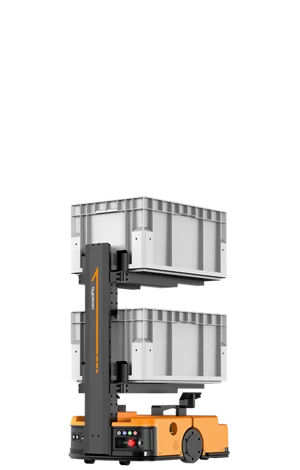

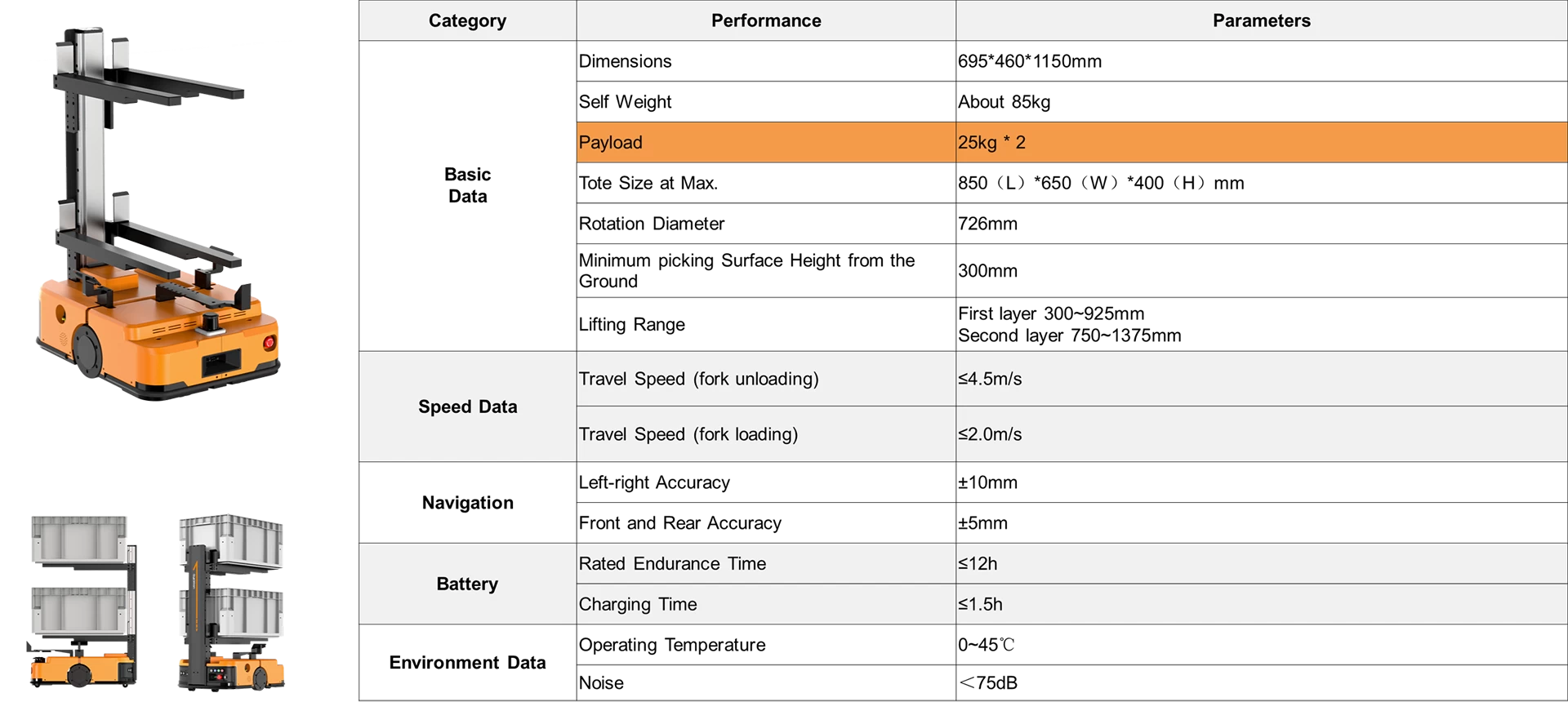

Specification M5E with Double Layer Forks
